Polycrystalline fiber strips and blocks for ultra-high temperature insulation

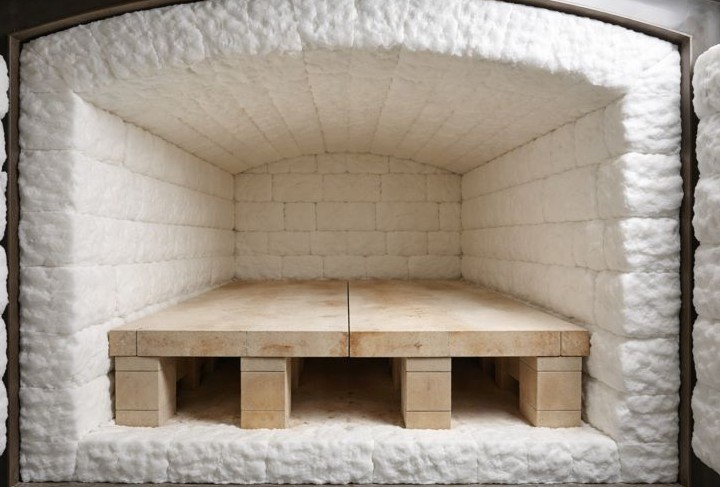

Crystalline fiber kiln lining application

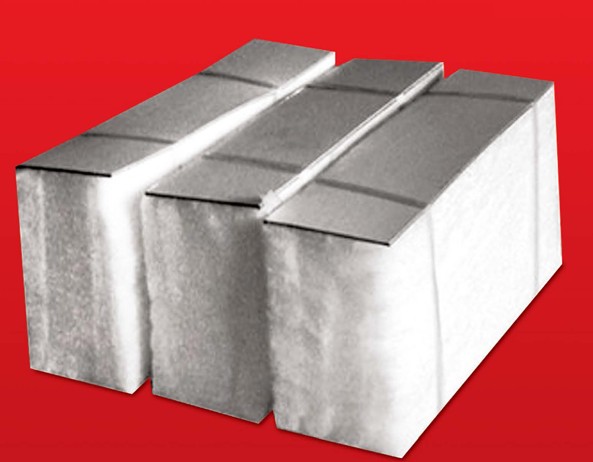

Crystalline Fiber Strips & Blocks for Ultra-High Temperature Insulation

Polycrystalline mullite fiber insulation for kiln and furnace energy-saving retrofits

🔥 1600°C Classification ⚡ 1500°C Service Temp 🧪 No Binders 💎 Pure Fiber

Crystalline Fiber Strips & Blocks are manufactured from polycrystalline mullite fiber cotton through precision processing. This product contains no binders, providing excellent high-temperature resistance, low thermal conductivity, and superior properties. It is the ideal refractory insulation material for kiln and furnace energy-saving retrofits. Features include excellent chemical stability, thermal shock resistance, corrosion resistance, and flexibility below 1500°C while maintaining easy installation and high thermal reflectivity.

📋 Quick Specifications

Classification Temperature 1600°C

Service Temperature 1500°C

Bulk Density 200 × 100 × 50 pcs

Thermal Conductivity @500°C 100 mW/m·K

📧 Get Quote 📊 Technical Data

Product Features

🌡️

Excellent High Temperature Performance

Withstands continuous use at 1500°C with classification temperature up to 1600°C

🔬

Low Heat Capacity

Minimal heat storage for faster heating cycles and energy savings

🧪

Excellent Chemical Stability

Resistant to most chemical environments and corrosive atmospheres

💥

Thermal Shock Resistance

Superior resistance to rapid temperature changes and thermal cycling

🛡️

Corrosion Resistant

Excellent resistance to corrosive gases and chemical attack

📜

Flexible Below 1500°C

Maintains flexibility at high temperatures, easy adhesion and installation

Technical Specifications

Property	Value
Classification Temperature (°C)	1600
Service Temperature (°C)	1500
Product Code	ZT-1500 1500°C
Permanent Linear Shrinkage (%)	×24h ≤-2 ≤0.20
Thermal Conductivity @500°C (mW/m·K)	100
Bulk Density (kg/m³)	200 × 100 × 50 pcs
Standard Size (mm)	Carton
Packing	Carton box
Quality Standards	ISO 9001-2000, ISO 14001-1996

Ultra-High Temperature Rating

1600°C

Classification Temperature - Ideal for the most demanding high-temperature applications

💡 Why Choose Polycrystalline Fiber?

No organic binders - pure inorganic fiber construction
Higher service temperature than standard ceramic fiber (1500°C vs 1260°C)
Lower shrinkage at extreme temperatures
Superior long-term stability in continuous high-temperature operation
Ideal for energy-saving kiln and furnace retrofits

Typical Applications

🏭

High Temperature Kilns

🔥

Furnace Lining Retrofits

⚡

Energy-Saving Upgrades

🧱

Hot Face Insulation

🔩

Steel Industry

🏺

Ceramic Industry

🔬

Laboratory Furnaces

♻️

Thermal Retrofitting

Used in high-temperature kiln and furnace energy-saving retrofits, hot face lining applications, and fireproof thermal insulation in demanding industrial environments.

Need Crystalline Fiber for Ultra-High Temperature Applications?

📧 Request Quote 📞 Call Now
