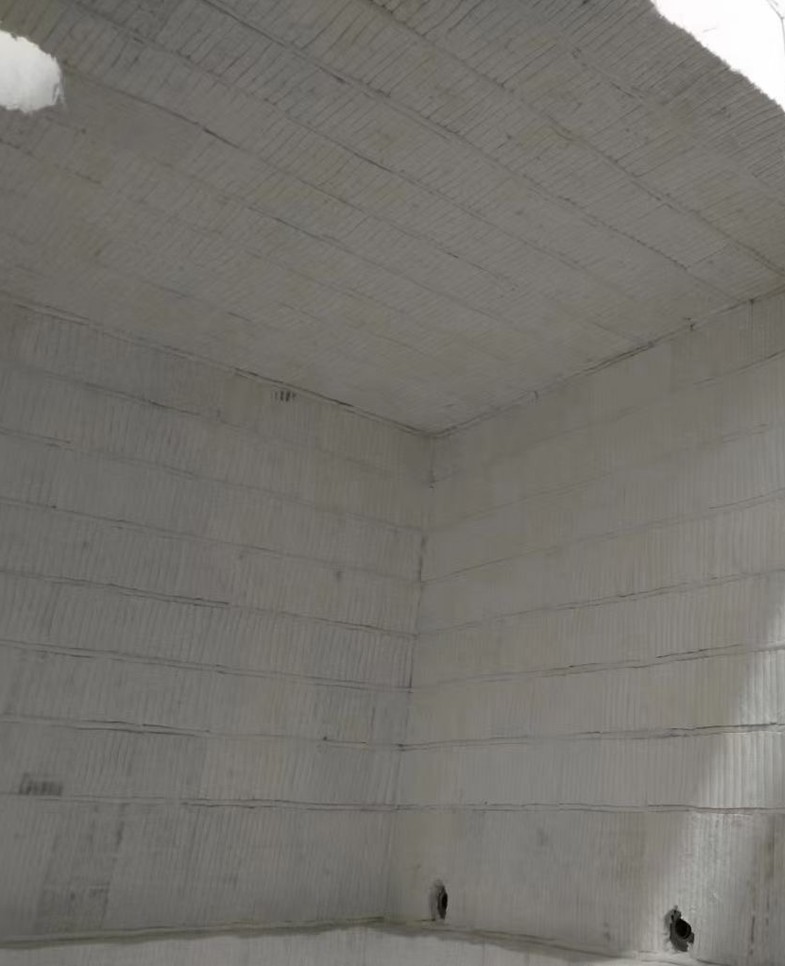

Ceramic fiber module installed in high temperature industrial furnace lining

Ceramic fiber module furnace lining installation

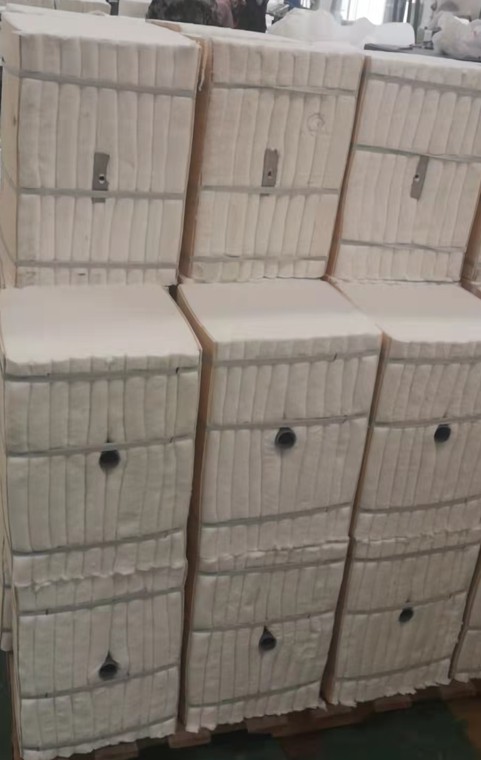

Ceramic fiber module block made from ceramic fiber blanket

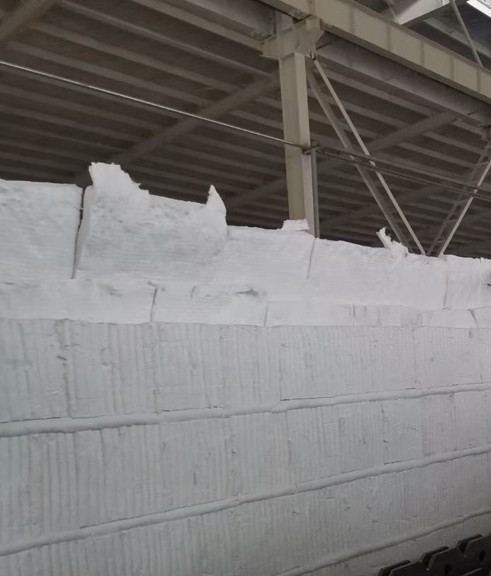

Ceramic fiber module installation with stud welding

Ceramic Fiber Module for High-Temperature Furnace Insulation

Pre-compressed modular insulation for fast installation and superior thermal performance

🔥 Up to 1430°C ⚡ Fast Installation 🛡️ Low Thermal Conductivity ♻️ Asbestos Free

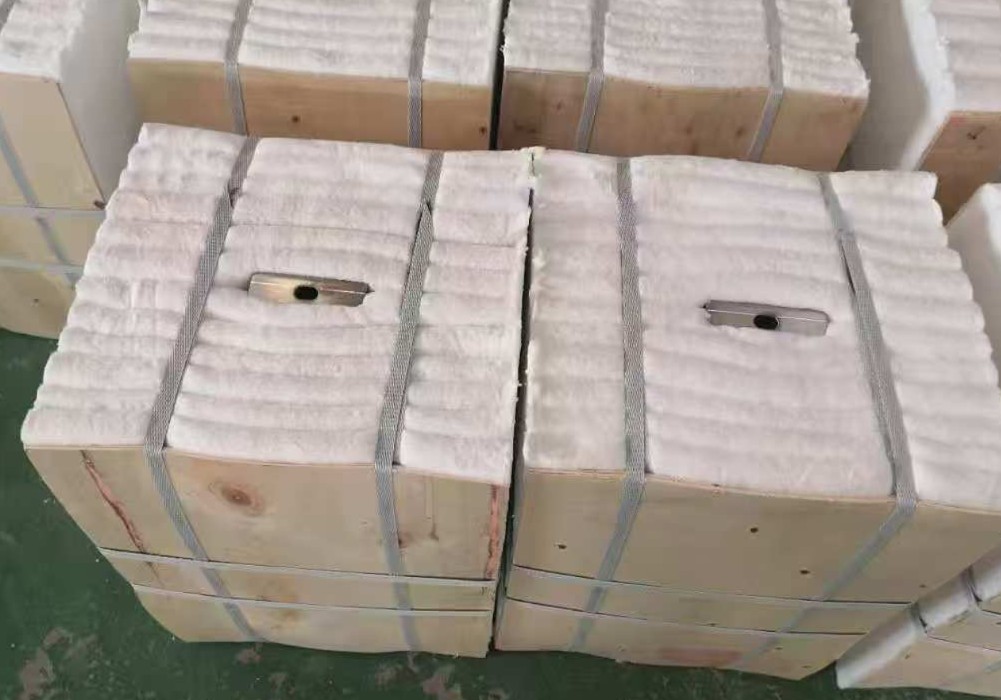

Ceramic Fiber Modules are manufactured from high-purity ceramic fiber blankets through folding, compression, and anchoring processes. The modules are designed to provide fast installation, excellent thermal insulation performance, and reduced heat loss in high-temperature industrial furnaces. Each module is pre-compressed to ensure tight joints after installation, forming a continuous, seamless lining that minimizes heat leakage and improves furnace efficiency.

📋 Quick Specifications

Classification Temperature 1050°C / 1260°C / 1430°C

Standard Size 300 × 300 × 250 mm

Density 200–260 kg/m³

Thermal Conductivity 0.045–0.195 W/m·K

📧 Get Quote 📊 Technical Data

Product Features

🌡️

Low Thermal Conductivity

Excellent insulation performance with thermal conductivity as low as 0.045 W/m·K at 200°C

🪶

Lightweight Structure

Reduces furnace shell load significantly compared to traditional refractory brick linings

💥

Thermal Shock Resistance

Excellent resistance to rapid temperature changes without cracking or damage

🔧

Fast Installation

Pre-compressed design allows quick installation and reduces maintenance downtime

🔗

Tight Joint Design

Modules expand after installation to form continuous, seamless insulation layer

🌿

Environmentally Friendly

Energy-saving and asbestos-free, meeting international environmental standards

Technical Specifications

Property	1050		1260		1430
Property	950°C	-	-	-	1000°C	-
Product Code	ZT-18	-	ZT-28	ZT-38	ZT-48	ZT-58
Permanent Linear Shrinkage (%) ×24h	≤-3	≤-3	1100°C×24h≤-3	1200°C×24h≤-3	1350°C×24h≤-3	1350°C×24h≤-3
Bulk Density (kg/m³)	200 ±10 / 220 ±10 / 240 ±10 / 260 ±10
Thermal Conductivity W/(m·K)	Mean Temp 200°C: 0.045 – 0.060
	Mean Temp 400°C: 0.095 – 0.120
	Mean Temp 600°C: 0.160 – 0.195
Standard Size (mm)	300 × 300 × 250 (Custom size available)
Packing	Carton / Woven Bag / Palletized
Quality Standards	ISO 9001-2000 / ISO 14001-1996

📋 Product Code Reference

ZT-18: 1050°C Standard

ZT-28: 1260°C Standard

ZT-38: 1260°C High Purity

ZT-48: 1430°C High Alumina

ZT-58: 1430°C Premium

Installation Method

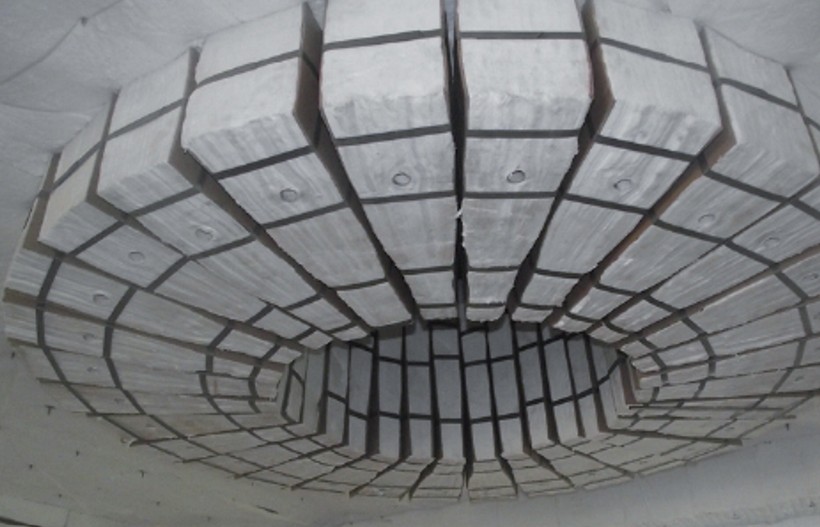

Ceramic fiber module installation with stud welding anchoring system

Modules are fixed to the furnace shell by metal anchors or studs. After installation, the compression is released to ensure tight contact between adjacent modules, forming a continuous insulation layer.

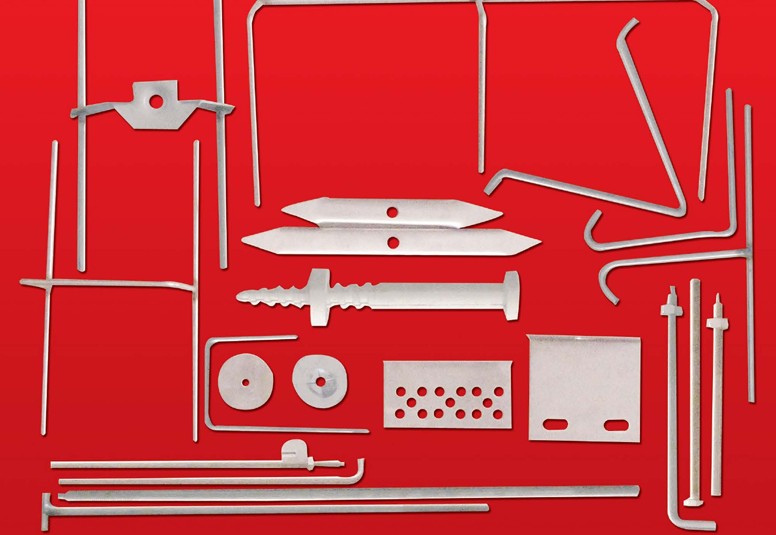

Stud welding anchoring system
Folded module installation
Parallel or staggered arrangement
Suitable for steel shell or refractory backup lining
Quick installation reduces downtime
Seamless joints minimize heat leakage

Typical Applications

🏭

Industrial Furnaces & Kilns

🔩

Steel Reheating Furnaces

⛽

Petrochemical Heaters

🧱

Ceramic Kilns

🔥

Heat Treatment Furnaces

🥇

Non-ferrous Metal Industry

⚡

Power Generation

💨

Industrial Boilers

Packing & Quality Standards

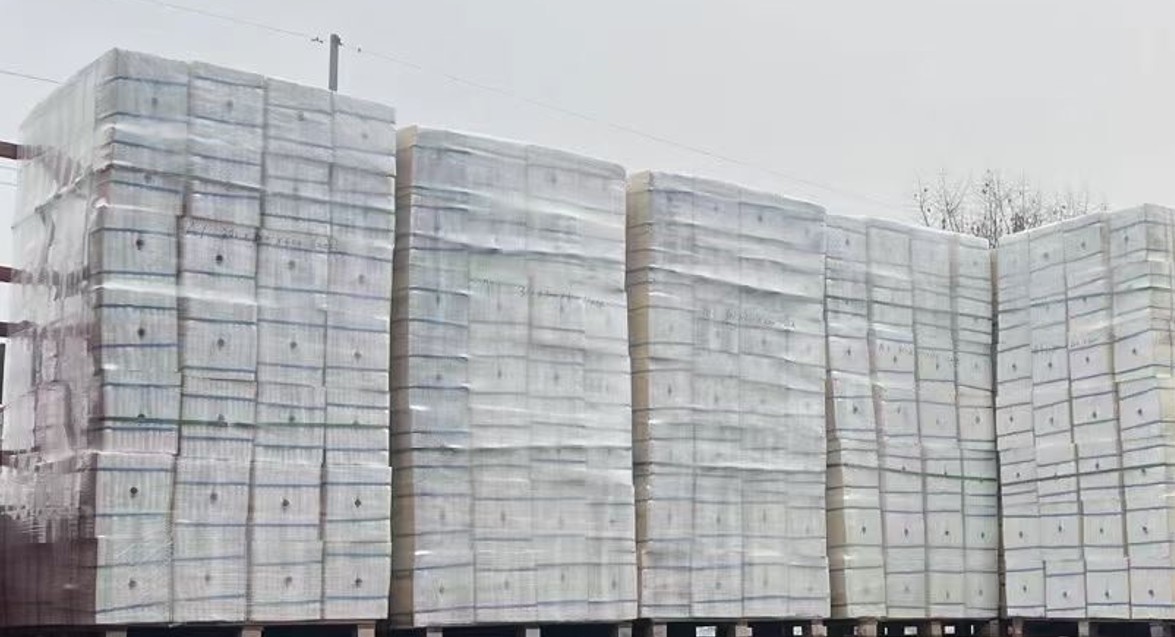

📦 Packing Options

✓ Carton box or woven bag
✓ Palletized packing available
✓ Custom packing on request

🏆 Quality & Standards

✓ ISO 9001 Quality Management System
✓ ISO 14001 Environmental Management System
