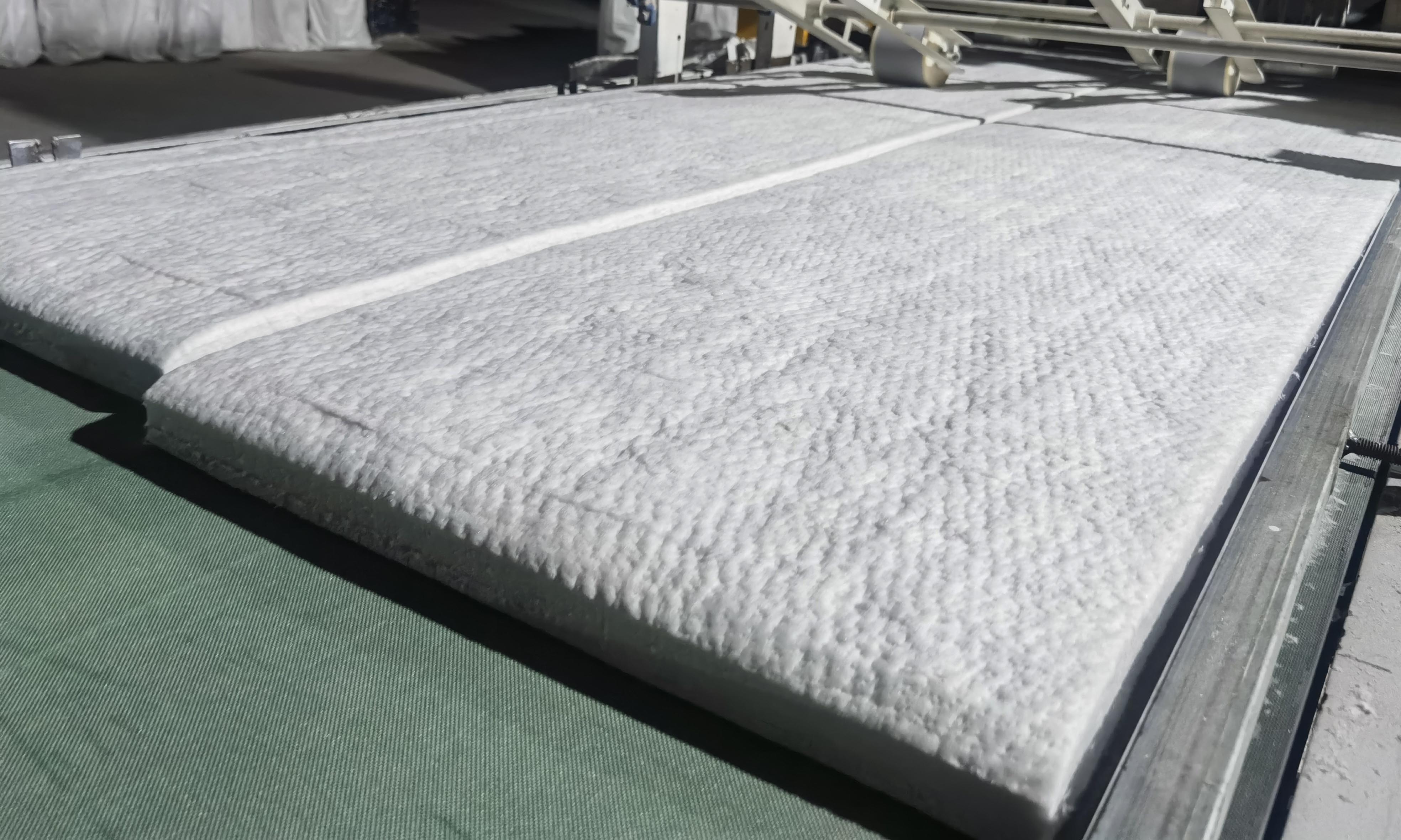

ceramic fiber blanket for industrial furnace insulation

ceramic fiber blanket white background product photo

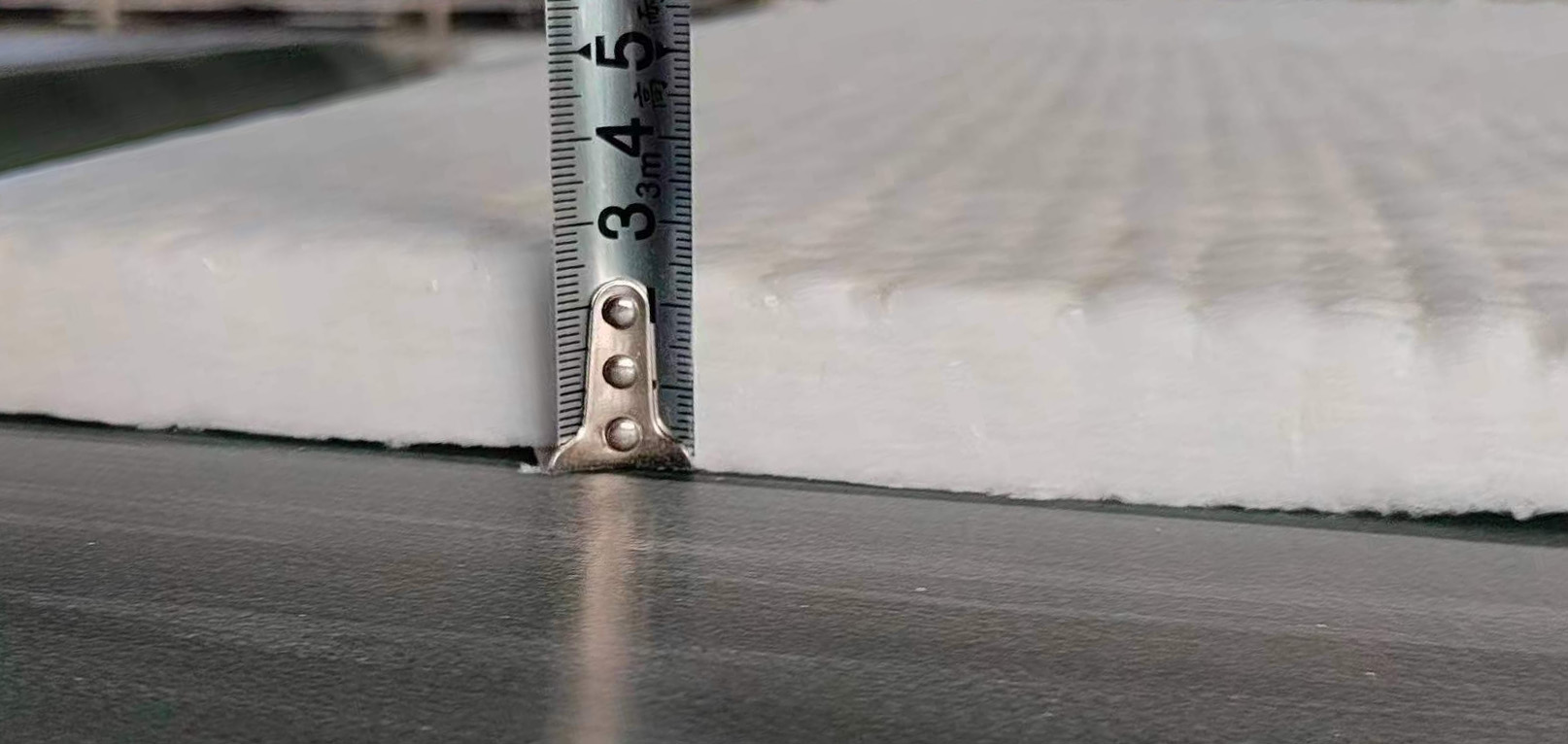

ceramic fiber blanket roll with different thickness options

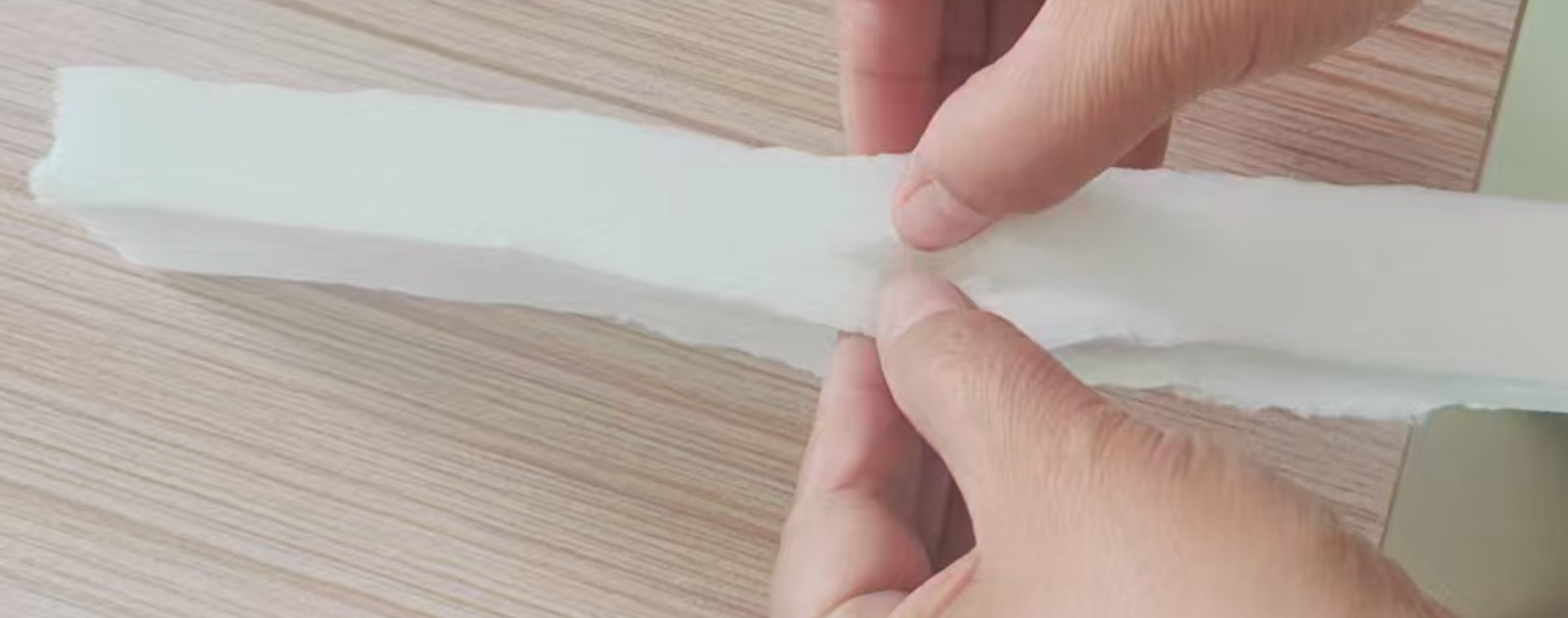

ceramic fiber blanket fiber structure close-up

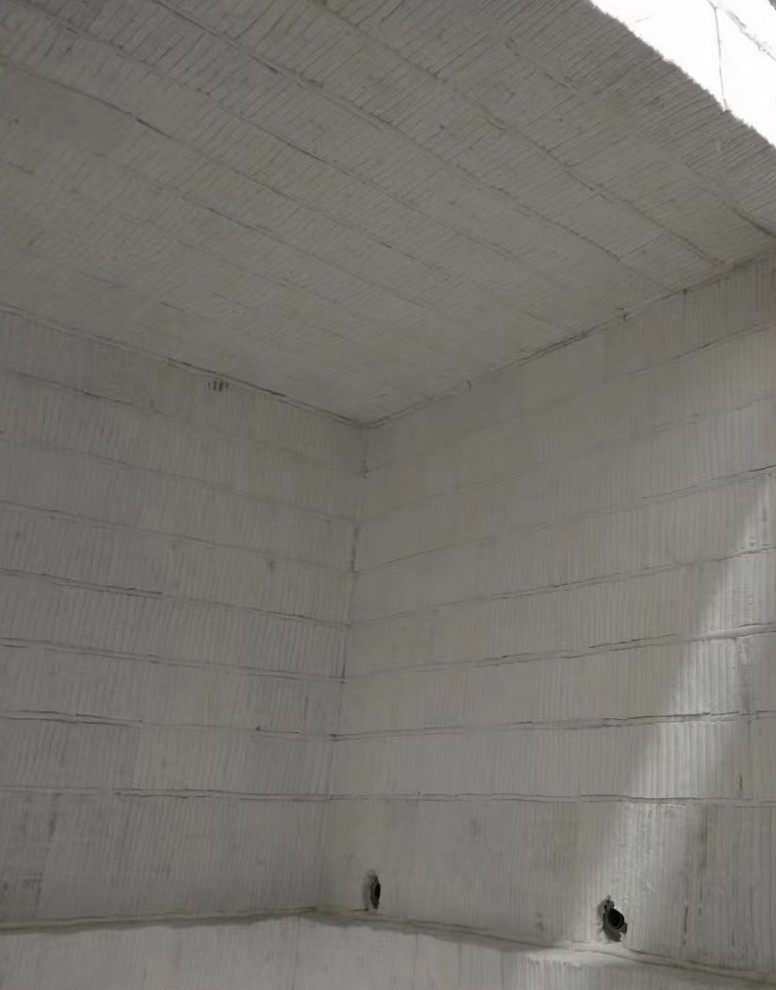

ceramic fiber blanket installed in industrial furnace lining

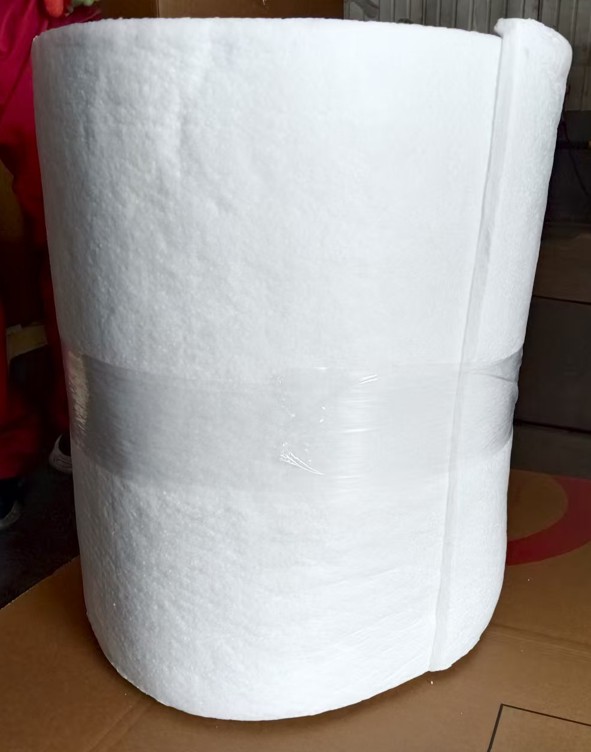

ceramic fiber blanket export packaging on pallet

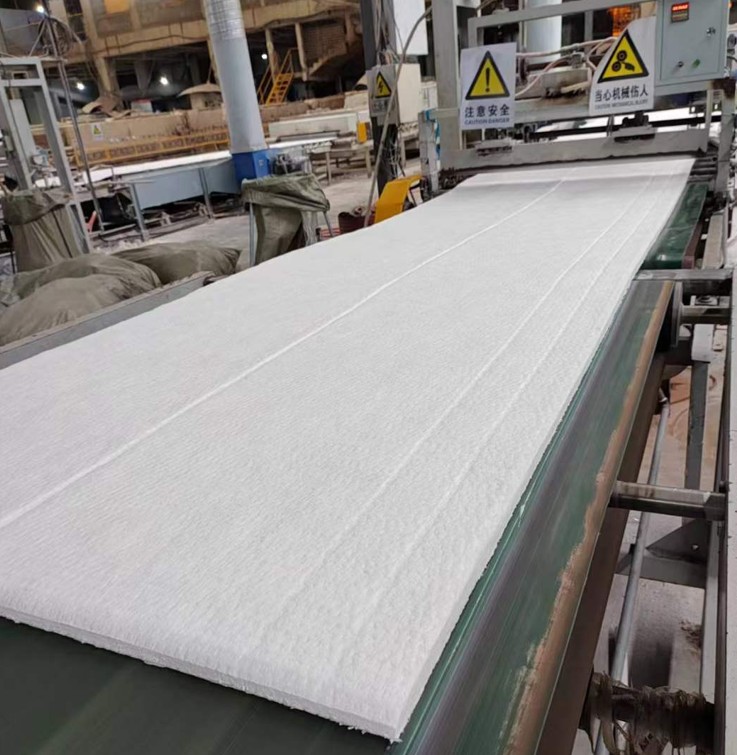

ceramic fiber blanket manufacturing production line

Ceramic Fiber Blanket for High Temperature Thermal Insulation

Name: Ceramic Fiber Blanket
Brand: ZTC Thermal Ceramics

Lightweight, Low Thermal Conductivity Insulation for Industrial Furnaces

🔥 Up to 1600°C 📦 Factory Direct ✅ ISO Certified 🚚 Global Shipping

Ceramic fiber blanket is manufactured through high-temperature melt spinning or blown fiber process with double-sided needling technology. The product features white color, uniform dimensions, and integrates fire resistance, thermal insulation, and heat preservation into one. It contains no binders and maintains good flexibility and tensile strength under neutral and oxidizing atmospheres.

📋 Quick Specifications

Classification Temperature 1050°C – 1600°C

Bulk Density 96 – 128 kg/m³

Standard Size 7200 × 610 × 10–50mm

Available Grades STD / HP / HA / ZA

📧 Get a Quote 📄 View Full Specs

Key Features

🌡️

Low Thermal Conductivity

Excellent insulation performance with thermal conductivity as low as 0.086 W/m·K at 400°C

⚖️

Lightweight Design

Low bulk density (96-128 kg/m³) reduces structural load and simplifies installation

🔥

High Temperature Stability

Maintains performance integrity at temperatures up to 1600°C for extended periods

🧪

Chemical Resistance

Excellent resistance to most corrosive chemicals except hydrofluoric acid and phosphoric acid

💪

Good Tensile Strength

Compressive strength 0.08-0.12 MPa ensures durability during handling and installation

🔧

Easy Installation

Flexible material that can be easily cut, wrapped, and installed on complex surfaces

Technical Specifications

Our ceramic fiber blanket is available in six grades to meet various temperature and application requirements. All products undergo strict quality control and testing to ensure consistent performance.

Property	Standard ZT-11	Standard ZT-21	High Purity ZT-31	High Alumina ZT-42	Zirconia ZT-51	Zirconia ZT-61
Classification Temperature (°C)	1050	1260	1260	1400	1430	1400
Bulk Density (kg/m³)	96 / 128
Permanent Linear Shrinkage (%) 24h at 128kg/m³	-4 @1000°C	-3 @1000°C	-3 @1100°C	-3 @1250°C	-3 @1260°C	-3 @1260°C
Thermal Conductivity (W/m·K) at 128kg/m³	0.086 @400°C 0.120 @800°C	0.086 @400°C 0.120 @800°C	0.086 @400°C 0.110 @800°C	0.092 @600°C 0.186 @1000°C	0.092 @600°C 0.186 @1000°C	0.98 @600°C 0.20 @1000°C
Compressive Strength (MPa) at 128kg/m³	0.08 – 0.12
Al₂O₃ (%)	44	46	47-49	52-55	39-40	39-40
Al₂O₃ + SiO₂ (%)	96	97	99	99	—	—
Al₂O₃ + SiO₂ + ZrO₂ (%)	—	—	—	—	99	99
ZrO₂ (%)	—	—	—	—	15-17	5-7
Fe₂O₃ (%)	<1.2	<1.0	0.2	0.2	0.2	0.2

📐 Standard Dimensions

Standard Size: 7200 × 610 × 10–50 mm

Custom Sizes: Other specifications can be manufactured according to customer requirements.

Note: Contact our technical team for custom specifications and special requirements.

Applications

🏭

Industrial Furnaces & Kilns

Backup insulation and lining for industrial furnaces, ceramic kilns, and heat treatment equipment.

🔥

High Temperature Pipelines

Thermal insulation wrapping for high-temperature pipes, ducts, and heat exchangers.

⚙️

Thermal Equipment

Heat preservation for boilers, heaters, and thermal processing equipment.

🔧

Expansion Joint Sealing

Filling and sealing for furnace body expansion joints, doors, and covers.

🛡️

Fire Protection

Fire barrier and thermal insulation in building construction and industrial facilities.

🏗️

Backing Materials

Backup insulation layer behind refractory bricks and castables in furnace construction.

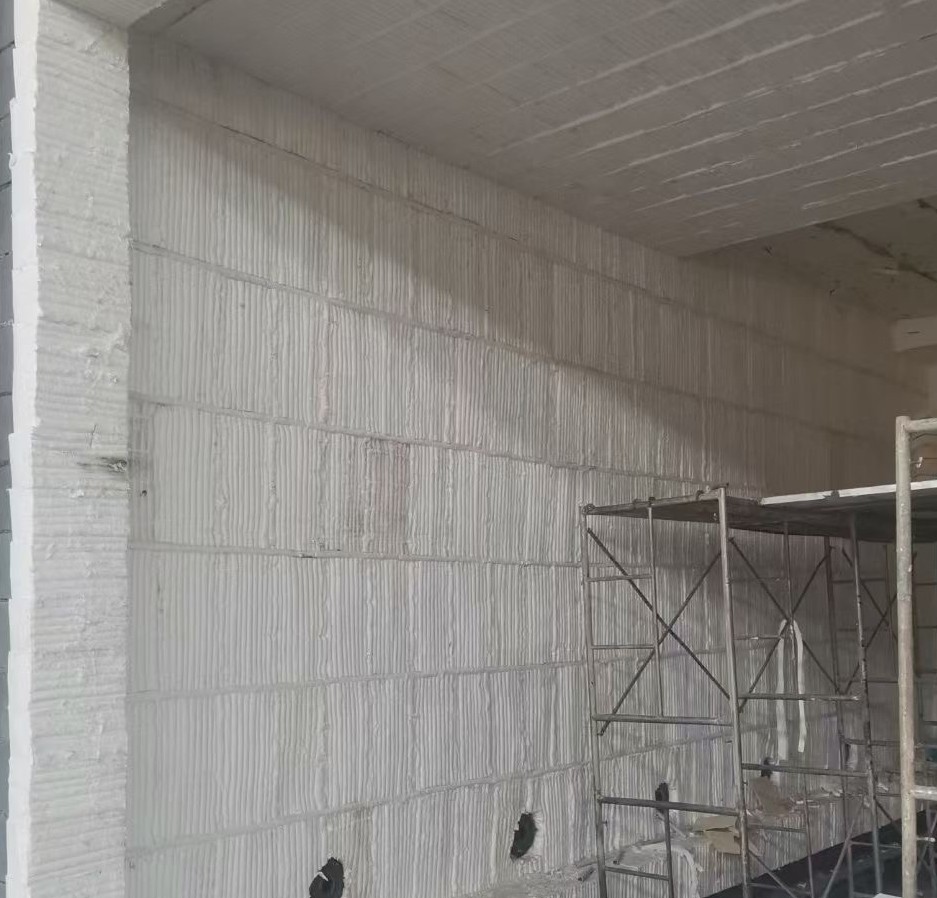

Installation Method

1

Surface Preparation

Ensure the substrate surface is clean, dry, and free from oil, dust, and loose materials.
2

Cutting & Sizing

Cut the blanket to required dimensions using a sharp knife or scissors. Allow 5-10% extra for compression.
3

Anchoring System

Install ceramic fiber anchors at recommended spacing (typically 300mm centers) for secure attachment.
4

Layer Installation

Install blanket layers with staggered joints. Ensure tight butting between adjacent pieces without gaps.
5

Sealing & Finishing

Apply ceramic fiber coating or facing material if required for hot face protection.

Why Choose ZTC Thermal Ceramics

🏭

20+ Years Experience

Established manufacturer with over two decades of expertise in ceramic fiber production

📦

160 Tons Daily Capacity

Large-scale production facilities ensuring timely delivery for bulk orders

✅

Strict Quality Control

ISO certified with comprehensive testing for every production batch

🌍

Global Export Experience

Exported to 30+ countries with professional logistics and documentation support

Ceramic Fiber Blanket for High Temperature Thermal Insulation

📋 Quick Specifications

Key Features

Low Thermal Conductivity

Lightweight Design

High Temperature Stability

Chemical Resistance

Good Tensile Strength

Easy Installation

Technical Specifications

📐 Standard Dimensions

Applications

Industrial Furnaces & Kilns

High Temperature Pipelines

Thermal Equipment

Expansion Joint Sealing

Fire Protection

Backing Materials

Installation Method

Surface Preparation

Cutting & Sizing

Anchoring System

Layer Installation

Sealing & Finishing

Why Choose ZTC Thermal Ceramics

20+ Years Experience

160 Tons Daily Capacity

Strict Quality Control

Global Export Experience

Related Products

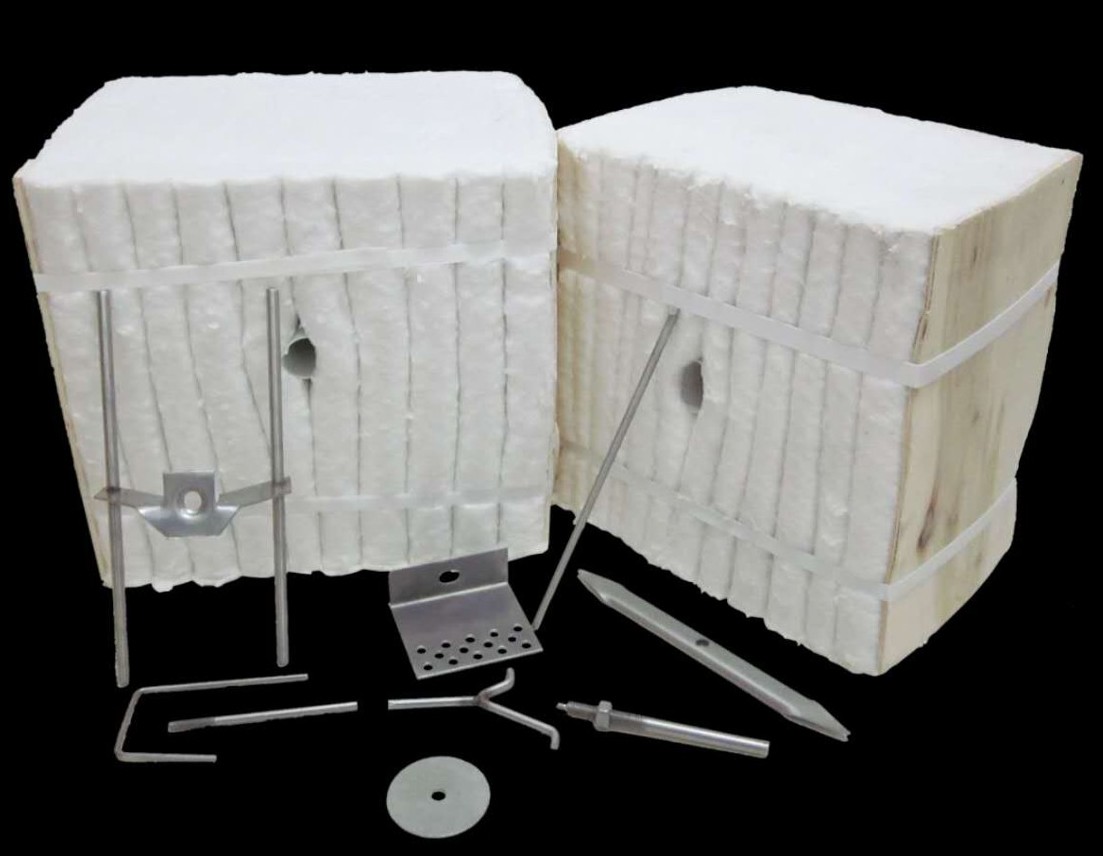

Ceramic Fiber Module

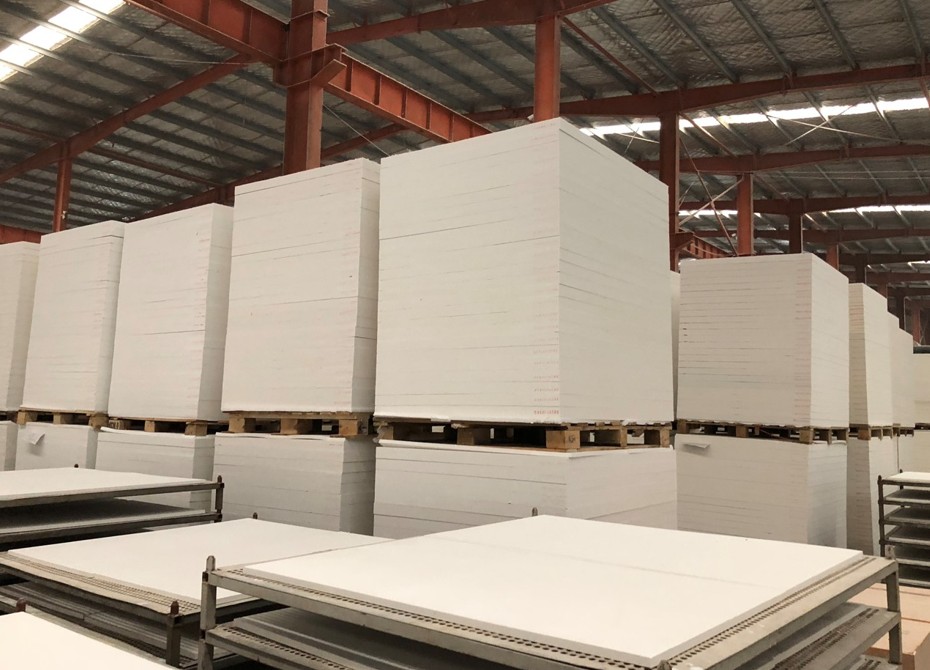

Ceramic Fiber Board

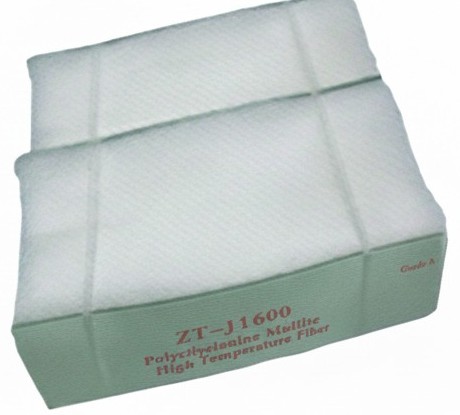

Ceramic Fiber Faced Block

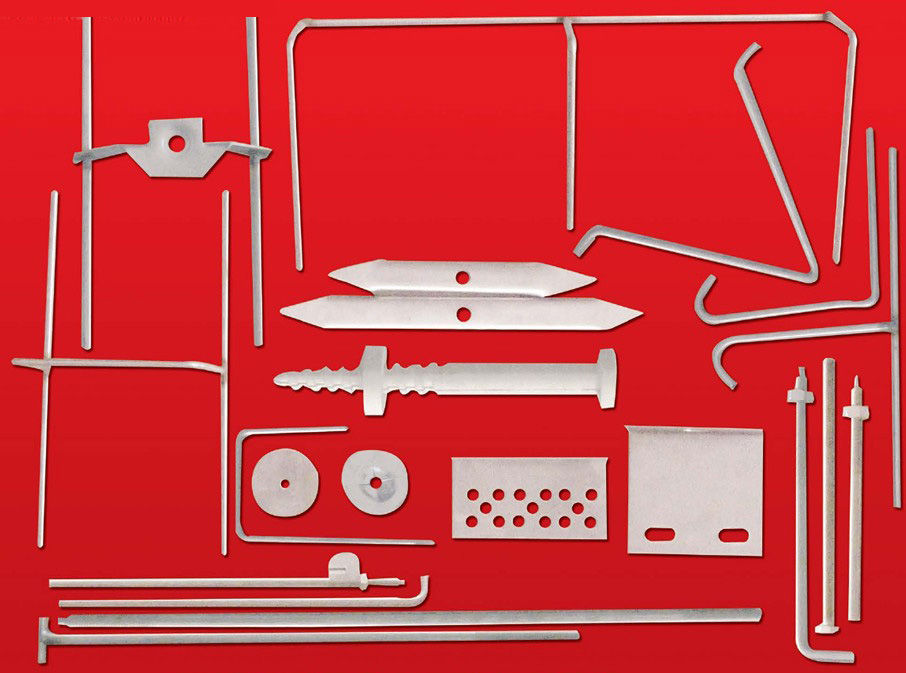

Ceramic Fiber Anchors
