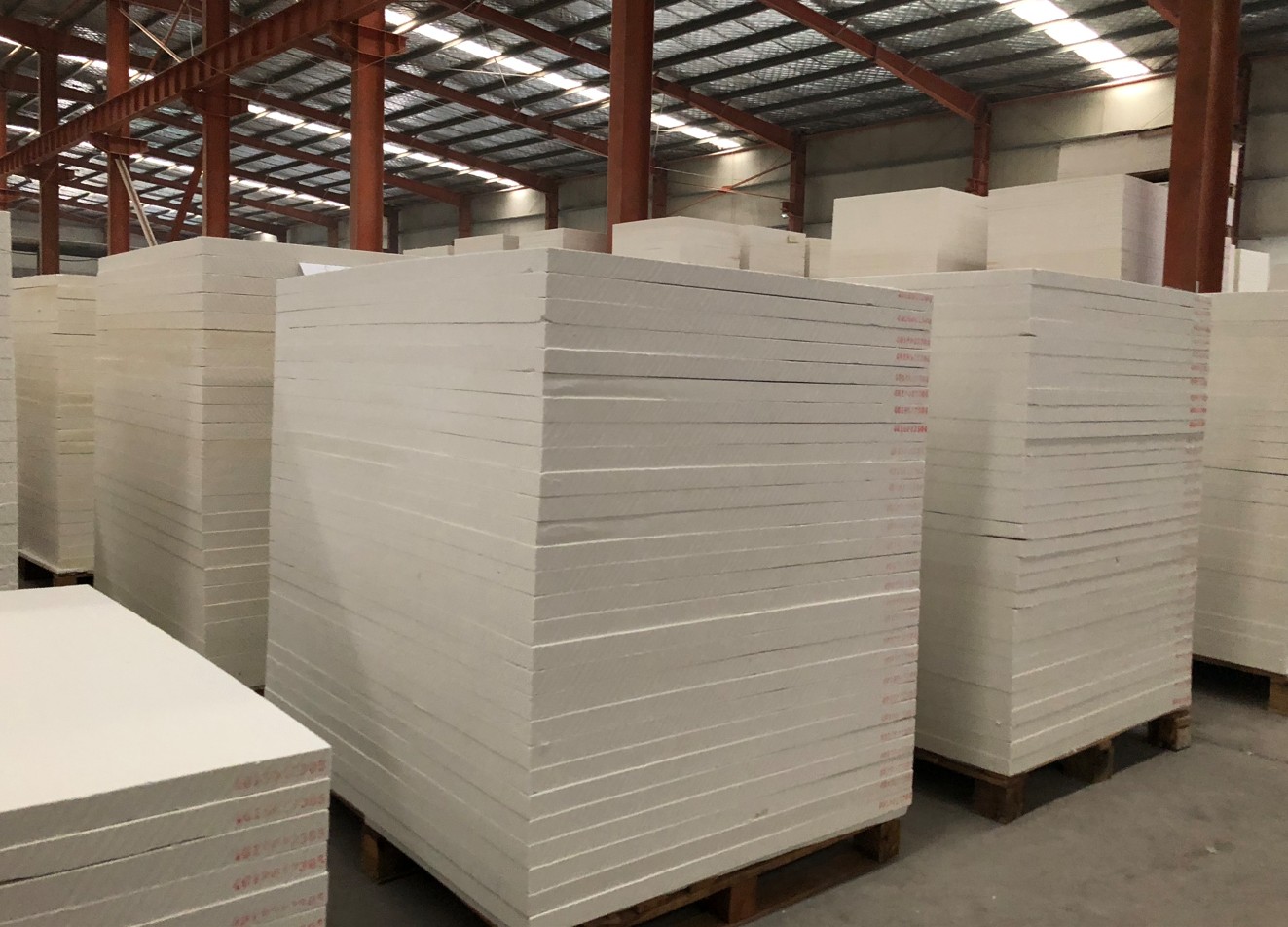

High temperature ceramic fiber board for industrial furnace insulation

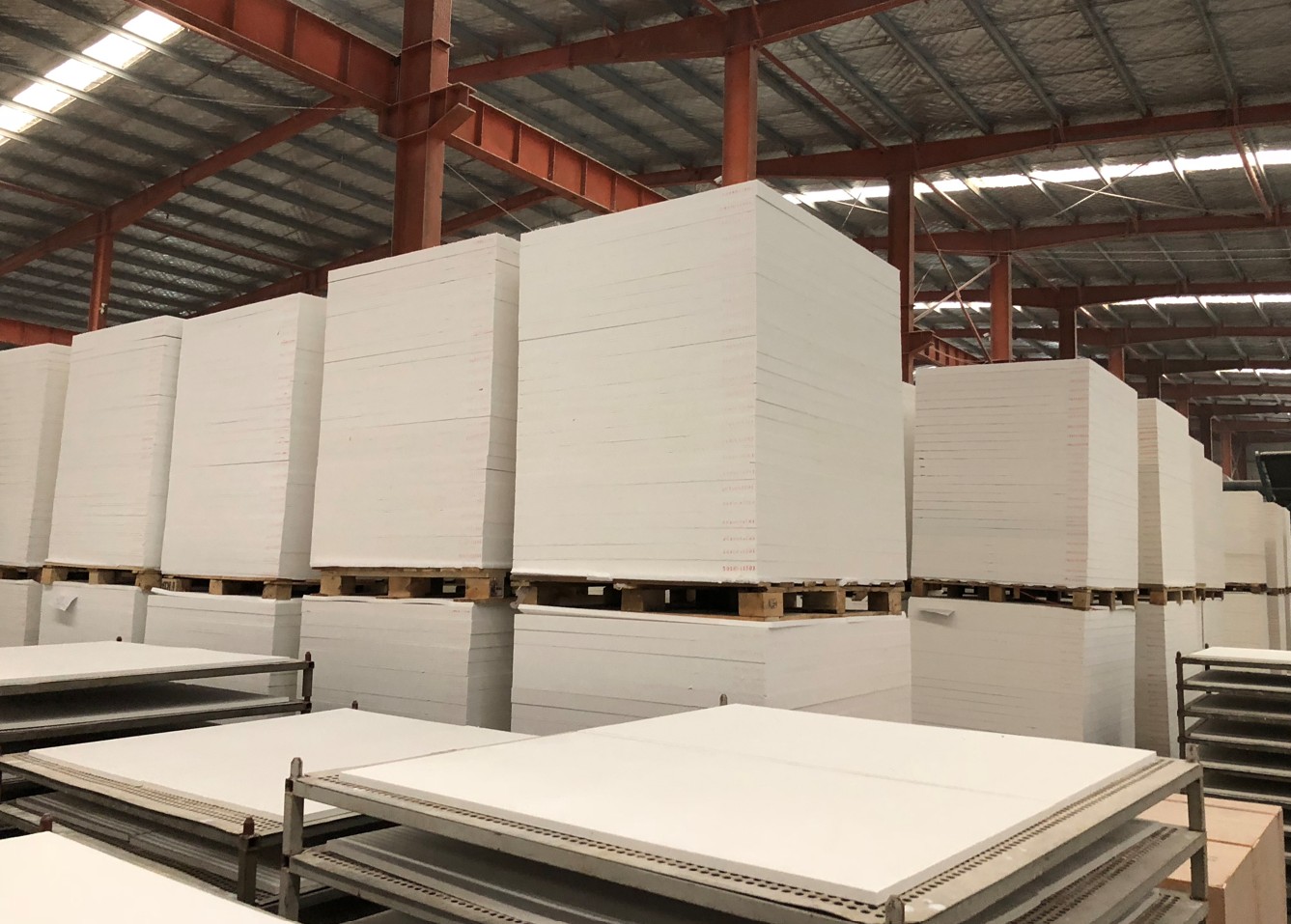

Ceramic fiber board easy cutting machining

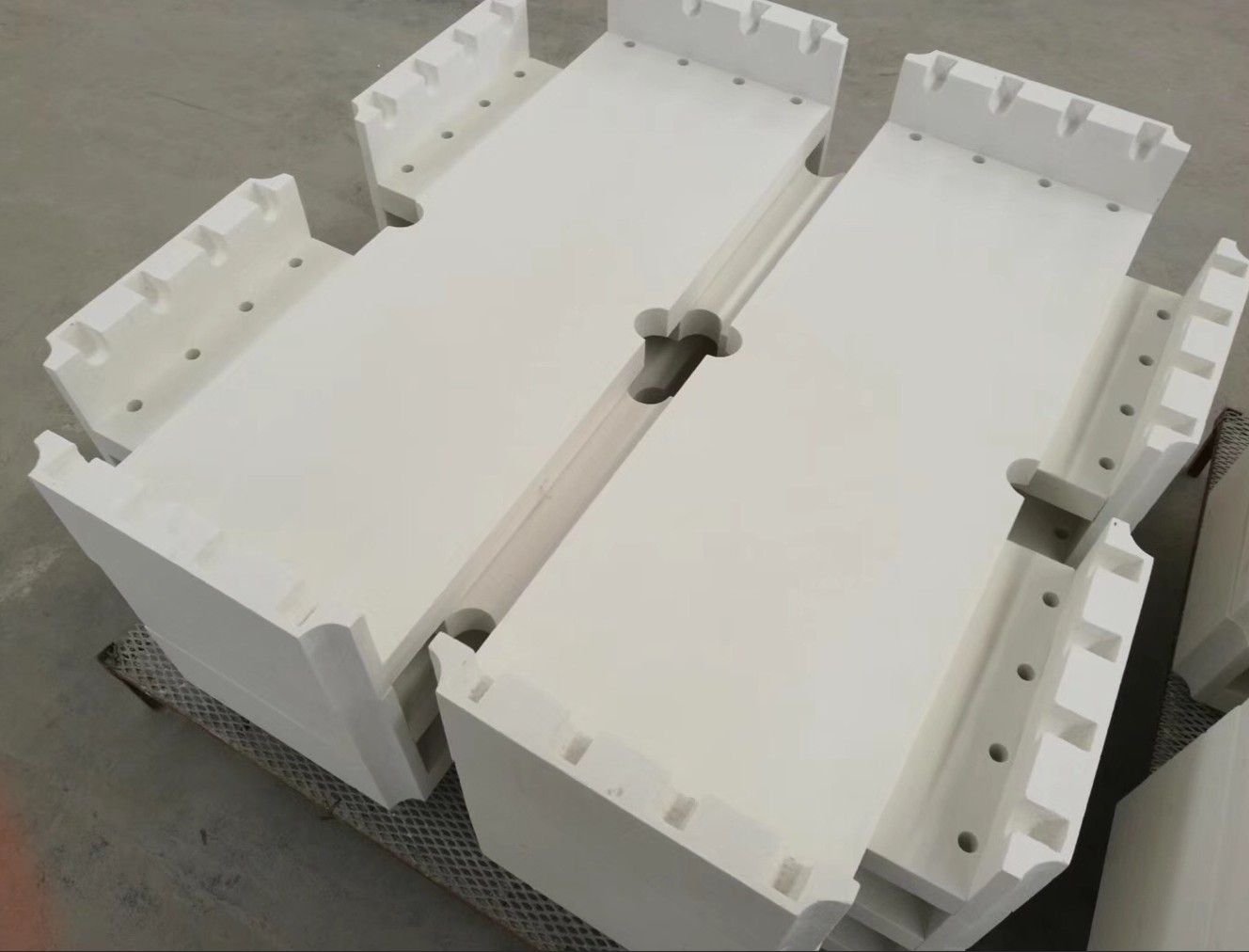

Ceramic fiber board furnace installation

Ceramic Fiber Board for High-Temperature Furnace Insulation

Rigid vacuum-formed insulation board with excellent thermal stability and machinability

🔥 Up to 1400°C 🛡️ Low Thermal Conductivity 💪 High Strength ✂️ Easy Machining

Ceramic Fiber Board is manufactured from high-purity ceramic fiber and binders through vacuum forming process. The product features low thermal conductivity, excellent high-temperature stability, uniform density, and superior thermal shock resistance. Suitable for applications requiring vibration, mechanical stress, and corrosive environments. The board material exhibits excellent rigidity, high strength, and is self-supporting while being lightweight. Easy to cut and machine.

📋 Quick Specifications

Classification Temperature 1260°C / 1400°C

Standard Sizes 900×600mm / 1000×500mm

Bulk Density 280–320 kg/m³

Thermal Conductivity 0.065–0.175 W/m·K

📧 Get Quote 📊 Technical Data

Product Features

🌡️

Low Thermal Conductivity

Excellent insulation performance with thermal conductivity as low as 0.065 W/m·K at 200°C

💎

High Rigidity & Strength

Self-supporting structure with excellent mechanical properties, suitable for structural applications

💥

Thermal Shock Resistance

Excellent resistance to rapid temperature changes and thermal cycling without cracking

✂️

Easy Machining

Can be easily cut, drilled, and machined to precise dimensions for custom applications

⚖️

Uniform Density

Vacuum forming process ensures consistent density and performance throughout the board

🛡️

Chemical Resistance

Resistant to most chemical corrosion except hydrofluoric acid and phosphoric acid

Product Types

Ceramic Fiber Board

Standard & High Purity Grades

1260 StandardZT-264
1260 High PurityZT-364
1400 High AluminaZT-564

Ceramic Fiber Fireboard

Higher Density for Fire Protection

1260 StandardZT-364D
1400 High AluminaZT-464D

Technical Specifications

Property	Ceramic Fiber Board			Ceramic Fiber Fireboard
Property	1260	1400	1400 HA	1260	1400
Product Code	ZT-264	ZT-364	ZT-564	ZT-364D	ZT-464D
Permanent Linear Shrinkage (%)	1000°C×24h ≤-3	1100°C×24h ≤-3	1350°C×24h ≤-3	1000°C×24h ≤-3	1200°C×24h ≤-3
Thermal Conductivity @200°C	0.065–0.085	0.070–0.090		0.103
Thermal Conductivity @400°C	0.095–0.112	0.110–0.125		0.125
Thermal Conductivity @600°C	0.145–0.165	0.155–0.175		0.151
Moisture Content (%)	≤1
Organic Content (%)	≤5
Bulk Density (kg/m³)	280 / 300 / 320			320
Standard Size (mm)	900/1000/1100×500/600/700×20/25/50			800/900×600/700×25/30/40/50
Packing	Plastic bag + Carton box
Quality Standards	ISO 9001-2000, ISO 14001-1996

📋 Product Code Reference

ZT-264: 1260°C Standard Board

ZT-364: 1260°C High Purity Board

ZT-564: 1400°C High Alumina Board

ZT-364D: 1260°C Fireboard

ZT-464D: 1400°C Fireboard

Typical Applications

🔩

Steel & Metallurgy

⛽

Petrochemical

🧱

Ceramic Industry

⚙️

Mechanical Equipment

🎨

Non-ferrous Metals

🏭

Glass Industry

🔥

Furnace Backup Lining

🚪

Expansion Joints & Seals

Used in steel, metallurgy, petrochemical, ceramic, mechanical, non-ferrous metal, and glass industries for furnace lining, backup insulation, expansion joints, kiln temperature zone separation, and fire protection.
