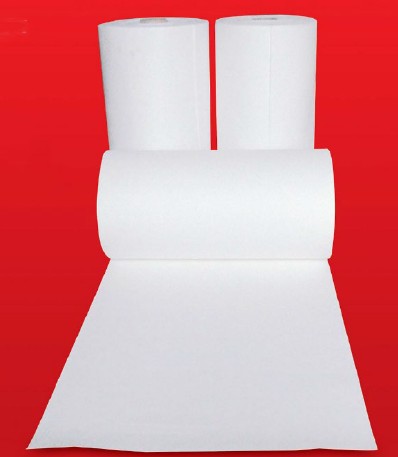

High temperature ceramic fiber paper roll for industrial insulation

Ceramic Fiber Paper for High-Temperature Insulation Applications

Flexible insulation paper with excellent electrical insulation and thermal properties

🔥 Up to 1400°C ⚡ Electrical Insulation 📜 Flexible & Easy Cut 🛡️ Corrosion Resistant

Ceramic Fiber Paper is manufactured from high-purity ceramic fiber with a small amount of binders. Advanced production technology ensures extremely uniform fiber distribution. The paper thickness and bulk density are strictly controlled. Ceramic fiber paper features excellent high-temperature resistance and thermal insulation properties with superior melt penetration resistance, making it ideal for glass industry micro-crystal injection applications. Available in standard and high-density versions for various applications.

📋 Quick Specifications

Classification Temperature 1260°C / 1400°C

Standard Thickness 1 / 2 / 3 / 4 / 5 mm

Bulk Density 200 ±15 kg/m³

Tensile Strength ≥0.3 MPa (1260) / ≥8 MPa (1400)

📧 Get Quote 📊 Technical Data

Product Features

🌡️

Low Thermal Conductivity

Excellent insulation performance with thermal conductivity as low as 0.075 W/m·K at 200°C

⚡

Excellent Electrical Insulation

Superior dielectric properties for electrical and electronic applications

✂️

Easy Machining

Can be easily cut, punched, and die-cut to precise shapes without special tools

📜

Flexible & Conformable

Can be wrapped around curved surfaces, suitable for multilayer composite applications

🛡️

Corrosion Resistant

Resistant to most molten metals except aluminum. Asbestos-free composition

💪

High Tensile Strength

High strength and tear resistance for demanding industrial applications

Product Types

1260 Ceramic Fiber Paper

Standard Grade - Up to 1260°C

Product CodeZTC-26
Linear Shrinkage1000°C×24h ≤-3%
Organic Content≤1%
Tensile Strength≥0.3 MPa

1400 Ceramic Fiber Paper

High Alumina Grade - Up to 1400°C

Product CodeZTC-46
Linear Shrinkage1260°C×24h ≤-3%
Organic Content≤8%
Tensile Strength≥8 MPa

Technical Specifications

Property	1260 Ceramic Fiber Paper	1400 Ceramic Fiber Paper
Classification Temperature (°C)	1260 / 1400	1400
Product Code	ZTC-26	ZTC-46
Permanent Linear Shrinkage (%)	1000°C×24h ≤-3	1260°C×24h ≤-3
Thermal Conductivity @200°C (W/m·K)	0.075 – 0.085	-
Thermal Conductivity @400°C (W/m·K)	0.110 – 0.121	-
Thermal Conductivity @600°C (W/m·K)	0.160 – 0.170	-
Organic Content (%)	≤1	≤8
Bulk Density (kg/m³)	200 ±15
Tensile Strength (MPa)	≥0.3	≥8
Moisture Content (%)	≤1
Standard Size (mm)	10000/20000/30000/40000×610/1220×1/2/3/4/5	10000/20000/30000/40000×610/1220×0.7/1/2/3/4/5

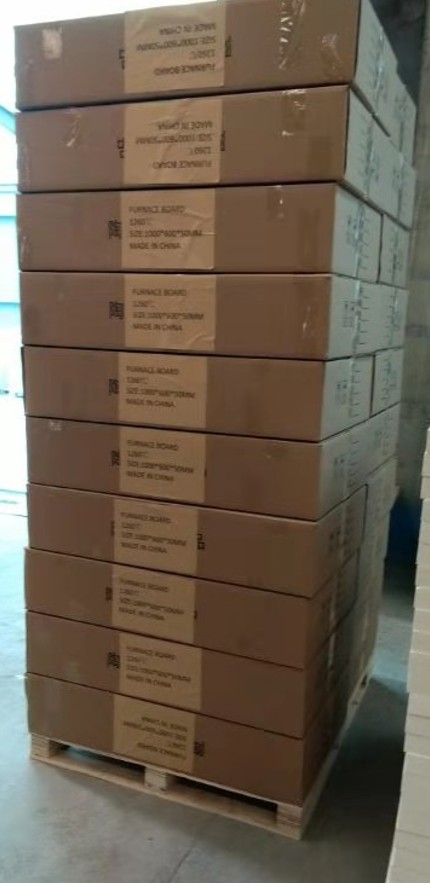

Packing	Plastic bag + Carton box
Quality Standards	ISO 9001-2000, ISO 14001-1996

📋 Available Sizes

Roll Length: 10m / 20m / 30m / 40m

Roll Width: 610mm / 1220mm

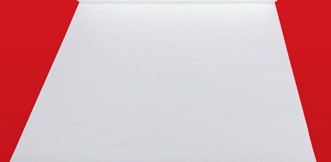

Thickness: 0.7mm / 1mm / 2mm / 3mm / 4mm / 5mm

Typical Applications

🔌

Electrical Insulation

🔧

Gaskets & Seals

🏠

Home Appliances

🔥

Heating Equipment

💧

Molten Metal Seals

🏭

Industrial Furnaces

✈️

Automotive & Aerospace

🔇

Sound Absorption

Used in industrial insulation, sealing, fireproof materials, home appliances, electrical heating devices, gaskets for electrical components, molten metal spout and launder seals, automotive and aerospace thermal insulation, industrial furnace cables and tubes, casting mold insulation, exhaust pipe insulation, fire protection materials, and sound absorption.
