Ceramic fiber spray coating application for furnace insulation

Ceramic Fiber Spray Coating for Seamless Furnace Insulation

Advanced spray-applied insulation for repairs, complex surfaces, and narrow spaces

🔥 Up to 1400°C 🎯 Seamless Application 🔧 Easy Repairs 🔇 Sound Absorption

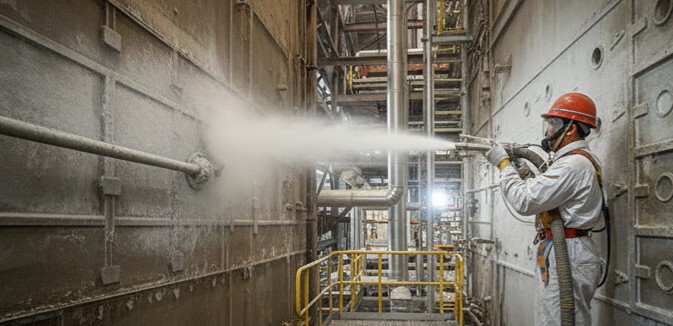

Ceramic Fiber Spray Coating is an innovative insulation technology developed from ceramic fiber and modern spray application techniques. High-quality ceramic fiber is processed through specialized fiber spray equipment, using high-pressure air to deliver the fiber to the spray nozzle, where it mixes with atomized binder to form a seamless insulation layer on the hot face surface. This product provides excellent integrity, no joints, and superior insulation performance, making it ideal for special areas, narrow spaces, furnace repairs, and maintenance applications.

📋 Quick Specifications

Classification Temperature 1260°C / 1400°C

Fiber Diameter 2–4 μm

Bulk Density 200–300 kg/m³

Compressive Strength ≥0.2 MPa

📧 Get Quote 📊 Technical Data

Product Features

🎯

Seamless Application

Creates a continuous insulation layer without joints for superior thermal performance

🔧

Easy Repairs & Maintenance

Ideal for furnace repairs, maintenance, and patching damaged insulation

📐

Complex Surface Coverage

Perfect for narrow spaces, corners, and irregular surfaces that are hard to reach

🌡️

Low Thermal Conductivity

Excellent insulation performance with thermal conductivity as low as 0.050 W/m·K at 200°C

🔇

Sound Absorption

Uniform fiber distribution provides excellent sound absorption and noise reduction

⚡

Quick Installation

Fast application with stable performance and low heat capacity for energy savings

Technical Specifications

Property	1260°C Grade			1400°C Grade
Property	ZT-17	ZT-27	ZT-37	ZT-47	ZT-57
Classification Temperature (°C)	1260			1400
Permanent Linear Shrinkage (%)	1000°C×24h ≤-3.5	1100°C×24h ≤-3	1150°C×24h ≤-3	1260°C×24h ≤-3	1350°C×24h ≤-3
Thermal Conductivity @200°C (W/m·K)	0.050 – 0.085			0.101
Thermal Conductivity @400°C (W/m·K)	0.090 – 0.112			0.115
Thermal Conductivity @600°C (W/m·K)	0.112 – 0.153			0.153
Organic Content (%)	≤5
Bulk Density (kg/m³)	200 – 300
Fiber Diameter (μm)	2 – 4
Compressive Strength (MPa)	≥0.2
Packing	Cotton: 20kg/bag; Binder: 20kg/bucket
Quality Standards	ISO 9001-2000, ISO 14001-1996

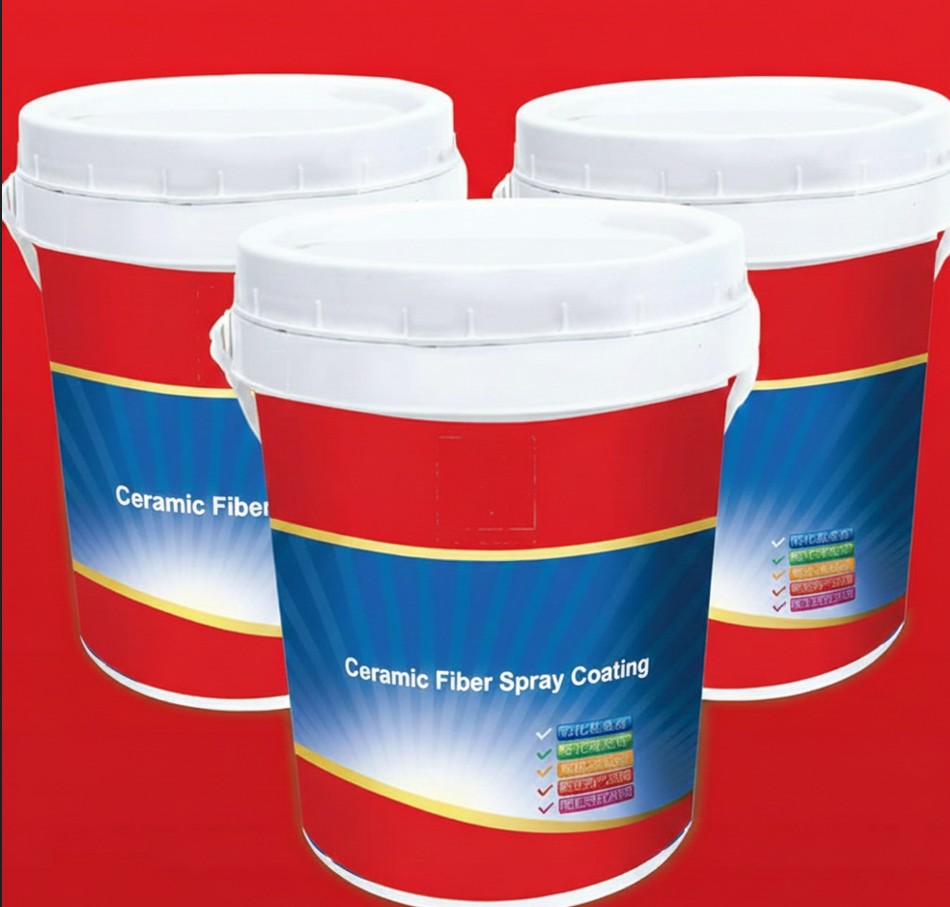

📦 Product Packaging

Fiber Cotton: 20kg per bag (bagged)

Binder: 20kg per bucket

💡 Application Tips

Prepare surface by cleaning and removing loose materials
Mix fiber cotton with binder at recommended ratio

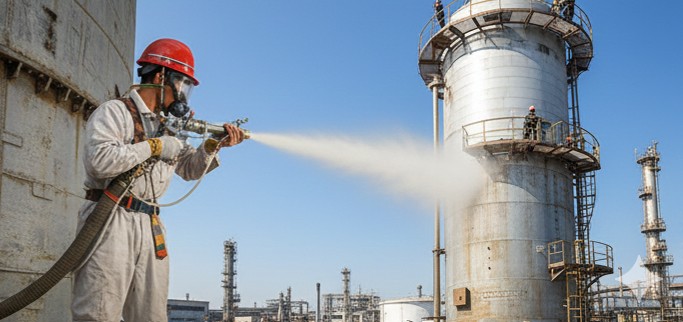

Apply using specialized spray equipment with high-pressure air
Build up layers to achieve desired thickness
Allow adequate curing time before furnace operation

Typical Applications

🔩

Metallurgy

⛽

Petrochemical

⚙️

Machinery

⚡

Power Generation

🏗️

Building Materials

🏟️

Large Stadiums

🔧

Furnace Repairs

🔥

Fire Protection

Used in metallurgy, petrochemical, machinery, power generation, building materials industries, large stadiums, and for furnace thermal insulation and fire protection applications.
